We offer support legs for most of our brazed plate heat exchanger models to facilitate easy installation.

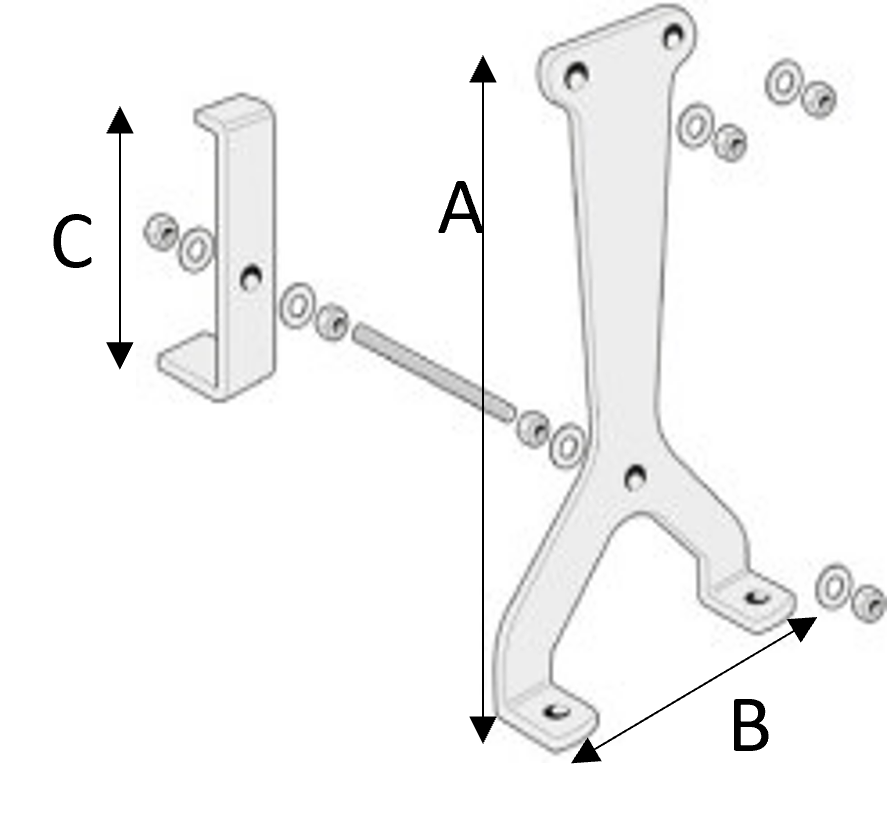

Stud bolt mounted support legs
For larger brazed plate heat exchanger models SWEP offer support legs that are mounted on stud bolts.
Schematic sketch
| Size | 35/35T | 120T/200T/ 220/ 320 | 250AS | 427 | 439 | 633 | 649 |
| A (mm) | 320 | 386 | 433 | 383 | 285 | 206 | 206 |
| B (mm) | 271 | 271 | 271 | 270 | 319 | 400 | 400 |
| C (mm) | 179 | 179 | 178 | 150 | 110 | 76 | 76 |
Stud bolt free support legs
For medium sized brazed plate heat exchanger models SWEP offer support legs that are mounted directly against the heat exchanger and does not require stud bolts.
| Size | 10T/10TS/12/16/25T/26/28/80/ 80AS/80S/85/85AS/85S/86 |
16DW/18 | ||
| NoP | 20-80 | 80-160 | 20-80 | 80-140 |
| Quantity | 1 | 2 | 1 | 2 |
| A (mm) | 225 | 225 | 225 | 225 |
| B (mm) | 122 | 122 | 124 | 124 |
| C (mm) | 125 | 125 | 124 | 124 |
| F (mm) | 80 | 160 | 80 | 160 |
